Full Automatic Control Double Shaft Shredder for Scrap Metal/Plastic/Wood/Solid Urban Waste

Model NO. : ZT-2SW14

Object : Plastic

Drive : Electric

Crushing Degree : Coarse Crusher

Crushing Style : Shearing

Principle : Fixed Culling

Cutter Material : Hard Alloy

Finished Surface : Cut Off Tool

Compressive Strength (For Crushing) : >300MPA

Tongs′ Features : Adjustable Tongs

Product Name : Double Shaft Shredder

Capacity(Kg/H) : 0.3-5

Crushing Chamber Width(mm) : 600*550

Overall Size(mm) : 3000*2000*1100

Power(Kw) : 18.5*2

Blade Diameter(mm) : 260

Voltage(V) : 380

Blade Number(PCS) : 20-100

Finally Produce Size(mm) : 8-300

Body Dimension : Customizable According to The Venue

Control : Full PLC Control

Usage : Medical/Solid/Industrial/Household Waste,etc.

Core Components : PLC, Gearbox, Motor, Gear, Pump

Sharft Design : Double Shaft

Customization : Accepted

Transport Package : Wooden Box

Specification : ZT-600

Trademark : ZTHB

Origin : China

HS Code : 8477800000

Production Capacity : 50000 Set /Year

Package Size : 320.00cm * 220.00cm * 130.00cm

Package Gross Weight : 3200.000kg

Lead Time : 30 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Contact Now

Full Automatic Control Double Shaft Shredder for Scrap Metal/Plastic/Wood/Solid Urban Waste

1. Shredder general introduce :

1.Double shaft shredder is also known as shear shredding machine.

2. Its basic principle is to reduce the size of the material through the corresponding knife plate shear. tear and extrusion force;

3.Widely used in industrial waste. household waste, dangerous waste. kitchen waste, plastic pipe. medical waste. sick and dead animalscorpse and other materials crushing and reducing work.

Full Automatic Control Double Shaft Shredder for Scrap Metal/Plastic/Wood/Solid Urban Waste

2.Shredder pictures

3.Main part pictures
Full Automatic Control Double Shaft Shredder for Scrap Metal/Plastic/Wood/Solid Urban Waste

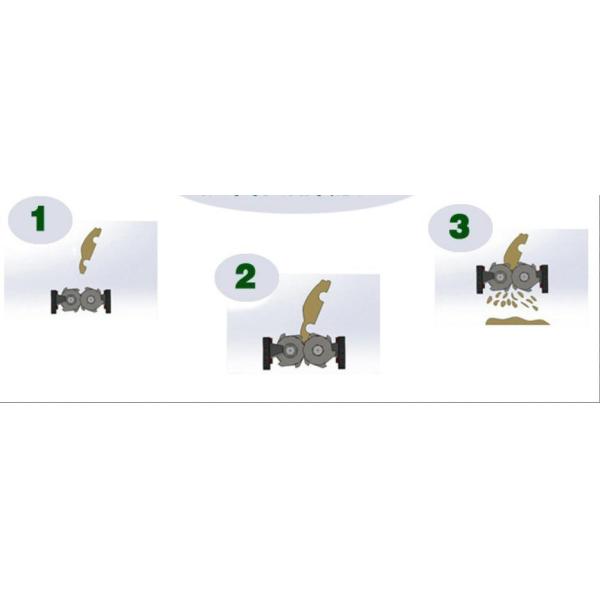

4.Work principle

1.The dual-shaft shredder uses two wear-resistant shredding toothed rollers.

2.During operation, the two shredding toothed rollers perform relative rotation to form a V-shaped shredding tooth cavity.

3.After the gap between the two toothed rollers (V-shaped crushing cavity), under the action of the shearing force of the relative rotation of the two toothed rollers, the incoming material is torn and sheared to the required particle size and discharged from the discharge port.

5.Shredder application
This shredder is widely used in waste plastic, waste rubber, wood and other bulky waste. Introduce more than 30 years of experience in manufacturing such equipment from Europe and the United States to China, and improve, research and develop according to the actual situation in China, and launch a series of double-shaft shredders with mature technology and advanced design. Capacity processing provides equipment of reliable quality.


Tons of bags	woven bag	fabric textile	leather goods	plastic film	fishing net

6.Shredder equipment features

1	Thick and heavy moving knife, high crushing efficiency Both moving knife and fixed knife are cast with alloy steel, which is strong and has a long service life
2	Thick iron frame plate, resistant to high torque, very strong
3	Easy to adjust, low maintenance, economical and durable
4	The unit output is the theoretical calculation throughput, and the specific use should be determined according to the actual density and shape of the crushed material

7.Shredder structure component

1	The whole equipment of double shear shredding machine includes motor,.reducer. cutter shaft. frame component (cutter shaft and frame composed of crushing chamber). inlet and outlet hopper. bracket. electrical control cabinet and so on. It through the crushing chamber of the two groups of cutter shaft opposite rotation. cutter disc opposite cross rotation. shear. tear. extrusion and other effects on the material to reduce the size of the material. Excellent crushing effect for hard materials. for difficult to handle tough materials. such as carpets. mattresses. tires and other materials can also be easily torn.
2	The machine has a very high crushing efficiency. the capacity per hour can choose from 0.3 tons to 50 tons. the particle size of crushed materials can choose from 8mm to 300mm.
3	According to different materials and handling capacity. zt provides specific blade design and cutter tooth design as well as heat treatment and surface treatment process of cutter head to achieve the desired crushing effect and production efficiency.

8.Structure drawing and name

1	Electrical motor	2	Lock nut	3	Moving cutter head
4	Fixed knife	5	Mainly axis	6	V-belt
7	Belt pulley	8	Reducer	9	Coupler
10	Feed Hopper	11	Bearing seat	12	Steel frame
13	Out hopper

9.Other product

10.Our customer

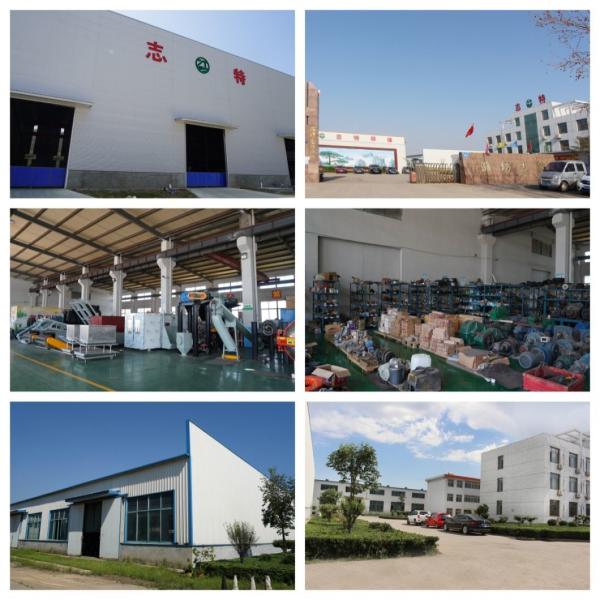

11.Company Profile
ZHITE Environmental Protection Technology Co., Ltd. Which located in the "International kite Capital",Weifang city,Shandong Province.With beautiful environment and convenient transportation,it's the domestic environmental protection equipment professional manufacturers.

With an area of more than 20,000 square meters,the company adopts modern enterprise management philosophy,seiko manufacturing,forge ahead. And the company has strong technical force,advanced technology,complete varieties,in strict accordance with ISO9001 standards,organization,design,production,sales and management.

The company is a comprehensive domestic enterprise with integrating scientific research and development,engineering design,production and installation and commissioning services.The main products are medical waste treatment equipment,diseased livestock and poultry harmless treatment equipment,household waste treatment equipment,kitchen waste treatment equipment,tail vegetable treatment equipment,sludge treatment equipment and all kinds of shredding equipment and other solid waste treatment products. Also can design and customize all kinds of efficient and practical equipment and production lines according to customer needs
Full Automatic Control Double Shaft Shredder for Scrap Metal/Plastic/Wood/Solid Urban Waste

THANKS FOR YOUR VISIT OUR PRODUCT ,WAITING FOR YOUR COME AND ODER !
